1720kWh-800kW Commercial & Industrial Energy Storage System
An air-cooled containerized system using 280Ah LFP cells for medium and large commercial loads, hotels, factories and base stations.
Designed for reliable energy storage deployment
An air-cooled containerized system using 280Ah LFP cells for medium and large commercial loads, hotels, factories and base stations. Tao Yan supports OEM/ODM cooperation, project configuration and system integration according to different load profiles and grid conditions.
Key technical parameters
Technical parameters are arranged according to the official product information.
| Item | Value |
|---|---|
| Capacity | 1720kWh |
| Rated output | 800kW |
| Cell type | 280Ah LFP |
| Configuration | 240S 8P |
| Nominal voltage | 768.0V |
| Voltage range | 691.2-844.8V |
| Cooling | Air cooling |
| Cycle life | ≥8000 cycles |
| Protection | IP54 |
| Dimensions | 6048×2438×2400mm |
Need this solution for your project?
Send capacity, power rating, application scenario and destination market. Tao Yan will recommend a suitable ESS configuration.
Product Gallery

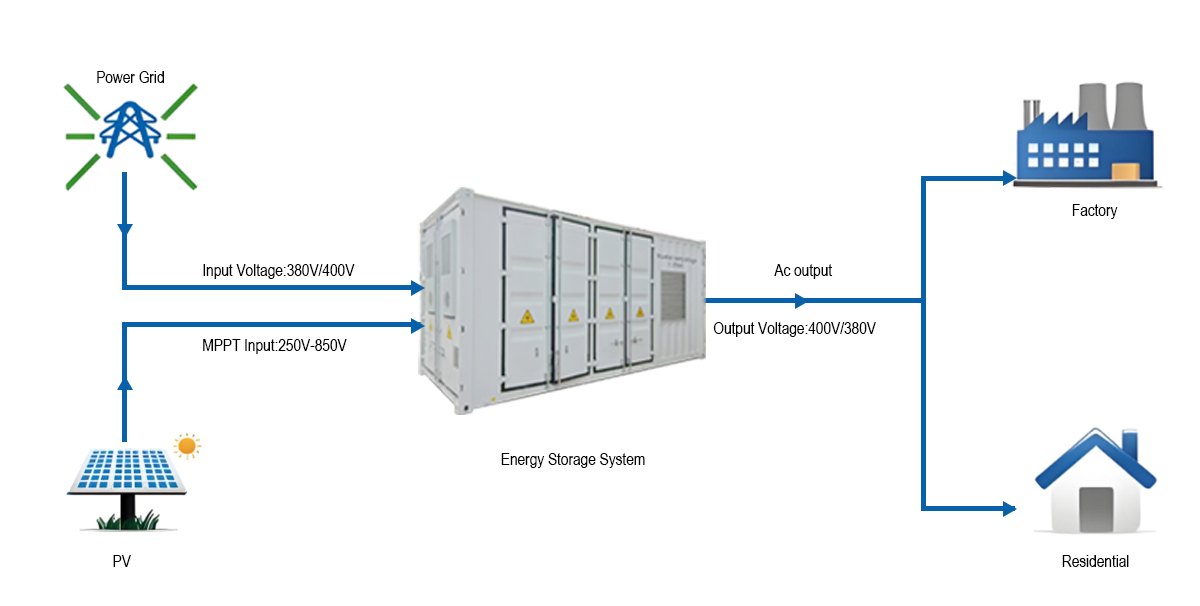

Product structure, battery module, PCS/inverter, EMS/BMS and application diagrams.
2610kWh / 1250kW Commercial And Industrial Energy Storage System
2610kWh / 1250kW Commercial And Industrial Energy Storage System
2610kWh / 1250kW Commercial And Industrial Energy Storage System
2610kwh-1250kw-commercial-industrial-energy-storage-system material fETfOI
1720kwh-800kw-commercial-industrial-energy-storage-system material SVoddF

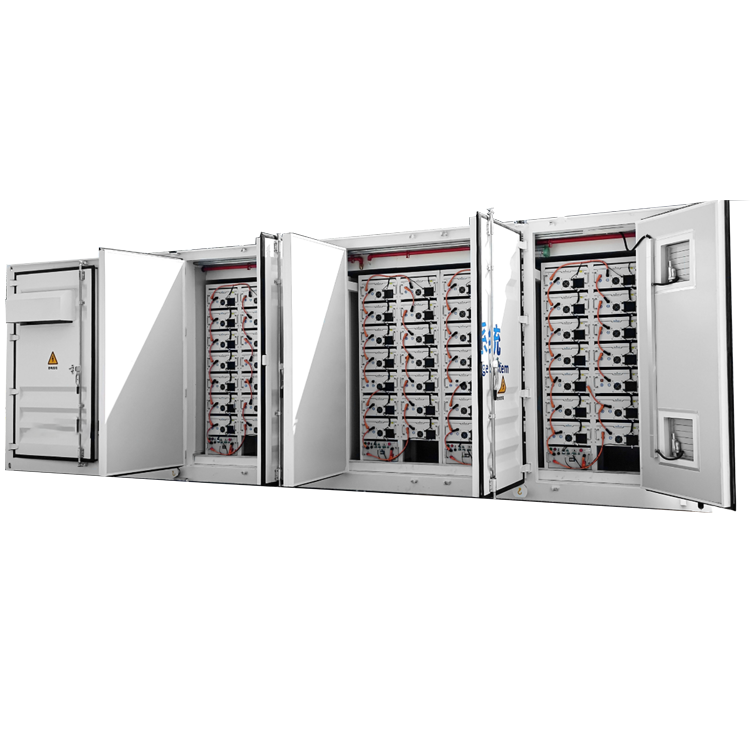

Battery Module
