261kWh / 125kW Commercial And Industrial Energiespeichersystem

Gewerbliche und industrielle Energiespeicher

Startseite / Produkte / 261kWh / 125kW Commercial And Industrial Energiespeichersystem

Product Center

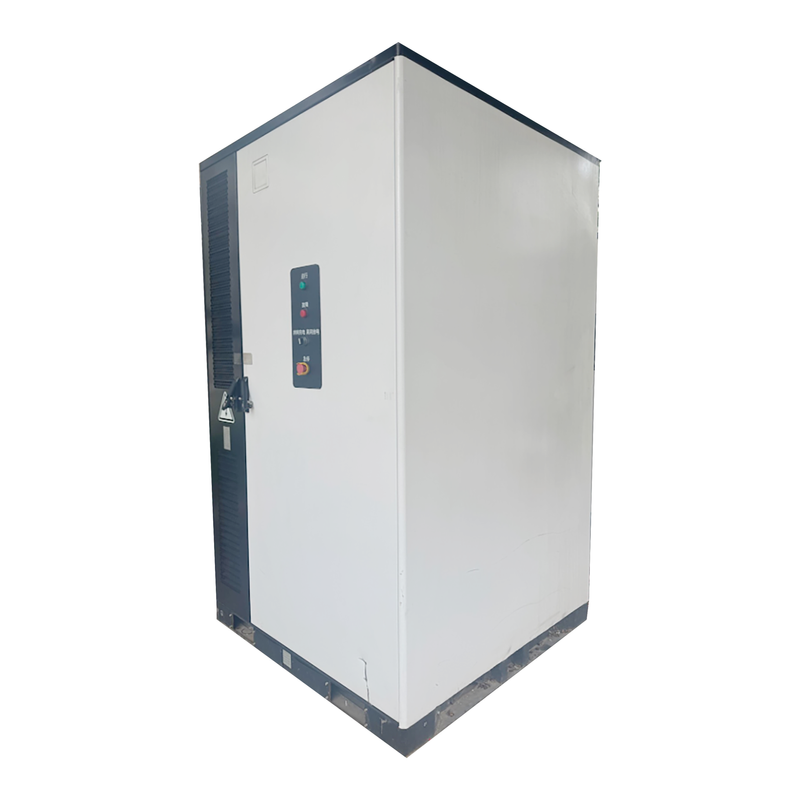

261kWh / 125kW Commercial And Industrial Energiespeichersystem

Cell Type	52.2 kWh
Kapazität	261kWh
Configuration	N/A
Nennleistung	125kW
Neinminal Spannung	166.4 V
AC Output Spannung	N/A
Betriebstemperatur Range	-25°C to 55°C
Cooling Method	Liquid cooling
Zyklenlebensdauer	≥8000 cycles
Schutz Level	IP54
Operating Altitude	≤4000m

Modell: TY-261kW-Batterie-Energiespeichersystem
Brand: TAOYAN
Code: TY261-2026

Herunterladen: 261kWh Energiespeichersystem Technische Datumn.pdf

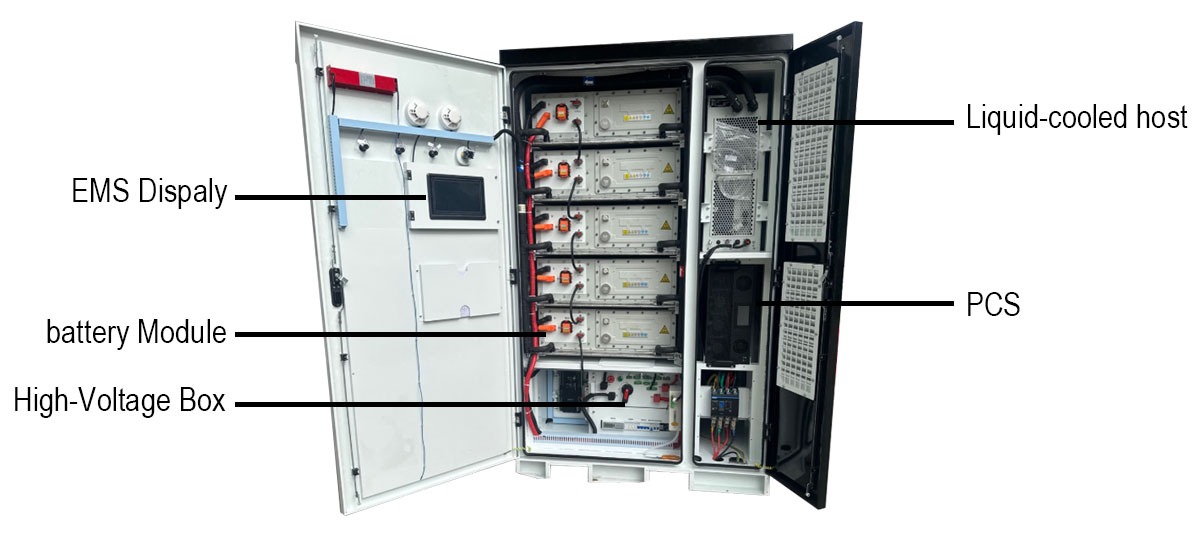

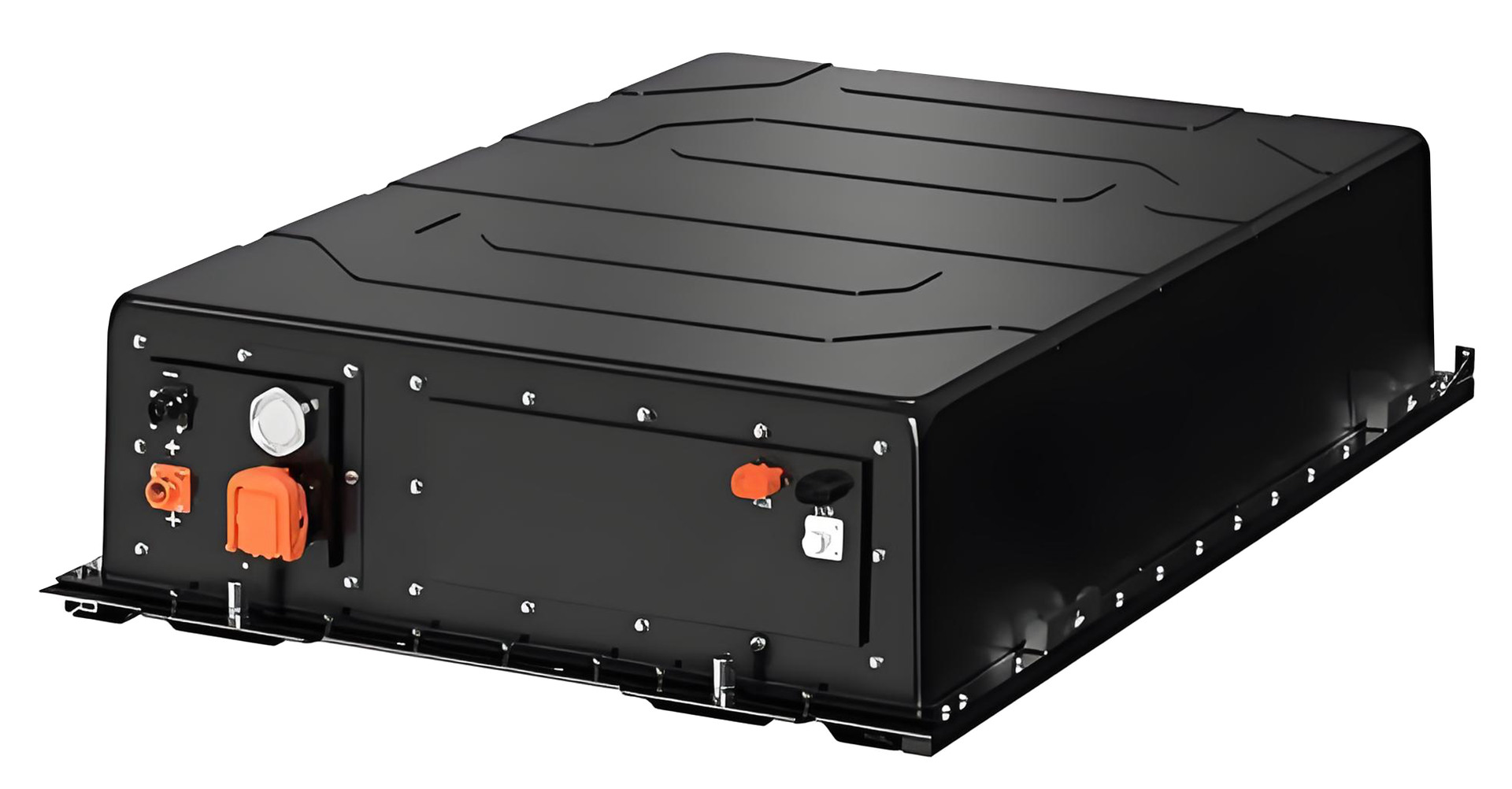

Batteriemodul (1P52S Cell)

Module Energy	52.2 kWh
Cell Spezifikation	LFP 314Ah
Internal Configuration	1P52S
Neinminal Spannung	166.4 V
Spannung Range	145.6 V – 187.2 V
Cooling Method	Flüssigkeitskühlung
Kommunikation Interface	CAN/RS485
Abmessungen (WDH)	442 * 1050 * 235 mm
Gewicht per Module	Approx. 310 kg
Zyklenlebensdauer	>= 6000 cycles @ 25°C

Wechselrichter Technische Datumn (MW-Level)

Rated AC Leistung	125 kW
Max. AC Leistung	137.5 kW
Rated AC Spannung	400 V (3P+N+PE)
Rated AC Strom	180 A
Max. AC Strom	198 A
PV Input Spannung Range	200V – 1000V
Max. Effizienz	98.5%
THDi / Leistung Factor	< 3% / > 0.99
Isolation Method	Neinn-isolation
Schutz Degree	IP65

Batteriemanagementsystem - Batteriemanagementsystem

1 / 5

Features

Fire Schutz System

Wiring Methods

Kundendienst

Frequently Asked Questions

1. What are the main applications von the 261kWh energy storage system?

It is mainly used for industrial and commercial peak shaving, demand response, backup power for critical facilities, and improving self-consumption von solar energy.

2. Why use liquid cooling instead von air cooling for the battery?

Liquid cooling provides better temperature uniformity (within +/- 3 degree C), extending battery cycle life and enhancing safety during high-power operation.

3. Can multiple units be connected in parallel?

Ja, the system supports multi-cabinet parallel connection on the AC side to scale up to meet larger energy demands.

4. What is the estimated lifespan von the 314Ah LFP cells?

Under standard operating conditions, the cells are designed for more than 6,000 to 8,000 cycles at 80% Entladungstiefe.

5. Is the system compatible with existing solar inverters?

Ja, our AC-coupled design allows easy integration with any existing PV system without changing the original solar setup.

The system is "plug-and-play" ready, requiring only AC connection and communication commissioning upon arrival at the site.
