Private Energiespeicher

Startseite / Produkte / 380V-10kW/15kWh Alle-in-One Hybrid-Energiespeichersystem – Taoyan New Energy

Product Center

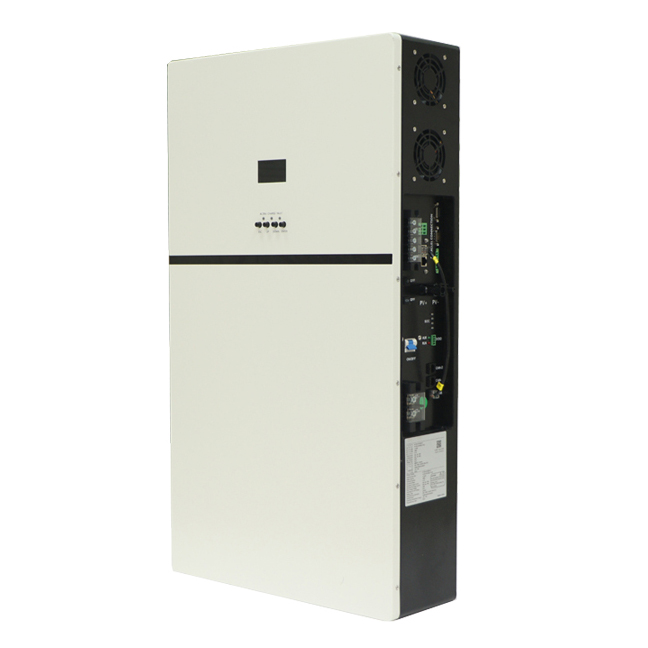

Product Image

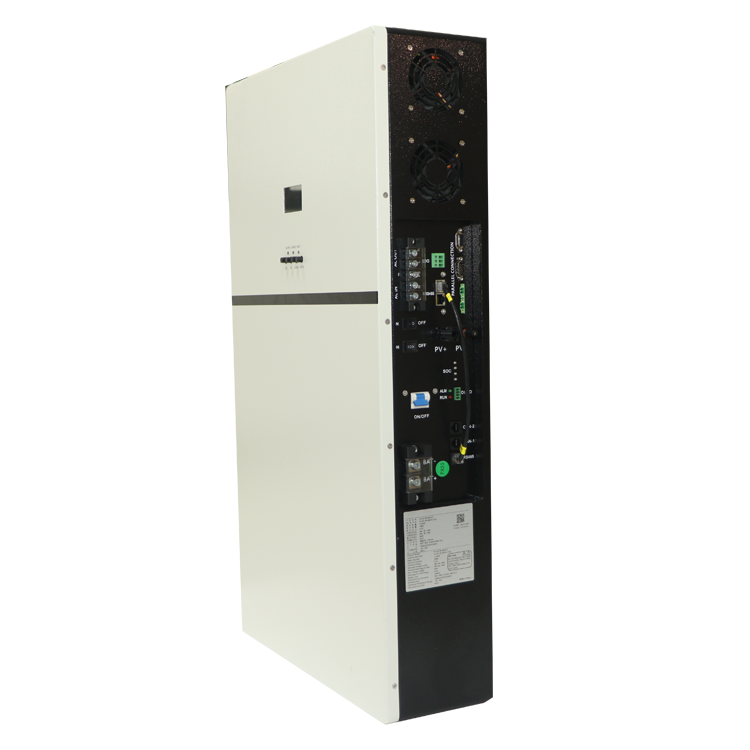

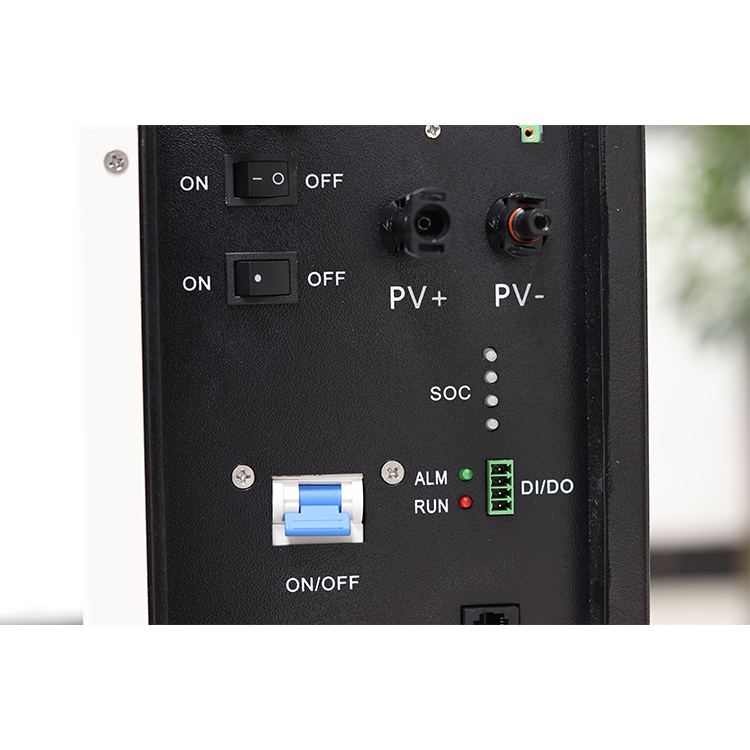

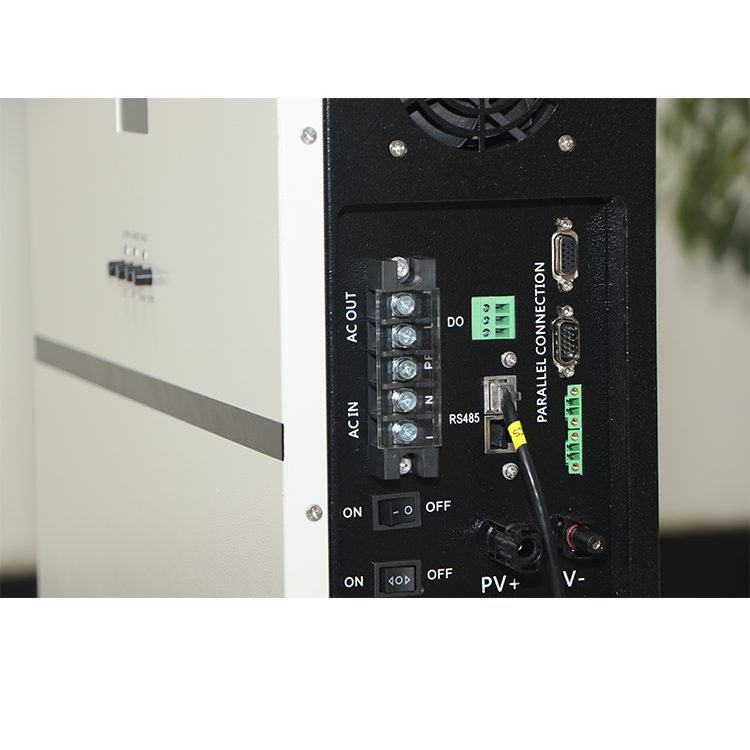

Product 1 Product 2 Product 3 Product 4
Cell Type100Ah-LFP
Kapazität5.12kWh
Configuration16S 1P
Neinminal Spannung51.2V
Betriebstemperatur Range-25°C to 55°C
Cooling MethodNatural Convection Cooling
Zyklenlebensdauer≥6000 cycles
Schutz LevelIP54
Operating Altitude≤4000m
Abmessungen (W x D x H) mm850*480*160
Gewicht57KG
  • TY-15KWh-Alle-in-One
  • TAOYAN
  • TY10-15-2026

Herunterladen: Herunterladen: 10kW 15kWh Alle-in-One Hybrid-Energiespeichersystem Technische Datumn.pdf

Core Cell Technology (314Ah LFP)

Core Cell Technology (314Ah LFP)
Neinminal Spannung3.2V
Zyklenlebensdauer (25°C)8000+ Cycles (0.5C)
Resistance≤ 0.18mΩ
Temperature RangeCharge: 0~60°C | Discharge: -30~60°C
CertificatesUL1973, UL9540A, IEC62619, GB/T36276

Hybrid Energiespeichersystem

Hybrid Energiespeichersystem
Cell Configuration200Ah Cell Base | 314Ah Cell Base
Max Output Leistung10,000W (Hohe Effizienz)
Spannung Range150V ~ 850V (MPPT)
Net Gewicht57 kg | 100 kg
System Dimension850*480*160mm | 1100*540*160mm
Installation ModeWall-mounted (Speichern 40% Space)

Connection Method & Dashboard

Connection Method
Connection Method

Integrated with powerful cloud platform for real-time remote statistics and one-click report generation

Frequently Asked Questions

1. What makes the 314Ah cell superior for home storage trends?

The 314Ah cell is the new industry standard, vonfering a 12% higher energy density than traditional 280Ah cells. It ensures the system remains compact while providing extended 16kWh capacity.

2. Is the monitoring system compatible with mobile devices?

Ja. The system supports WiFi/GPRS connection. You can monitor real-time power flow, SOC, and historical earnings via our mobile App or web dashboard.

3. How does the hybrid ESS handle grid outages?

The system features a seamless UPS-level switch (<10ms). During a blackout, the hybrid ESS automatically powers your critical loads using stored solar energy.
