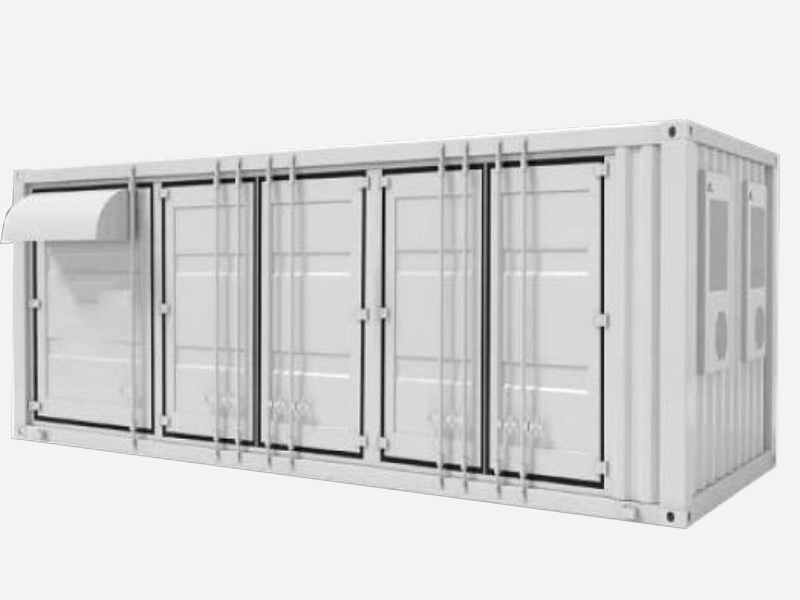

1720KWH-800KW Solution[copy], Taoyan New Energy | Industrial BESS Factory
Battery Compartment Specifications and Parameters
Boost Compartment Specifications and Parameters
Gallery
Project Images
Technical Specs
Specifications
| Cell Type | 280Ah-LEP |
| Capacity | 1720.0kWh |
| Configuration | 240S 8P |
| Nominal Voltage | 768.0V |
| Operating voltage range | 691.2-844.8V |
| Operating Temperature Range | -25°C to 55°C |
| Cooling Method | Air cooling |
| Cycle Life | ≥8000 cycles |
| Protection Level | lP54 |
| Operating Altitude | ≤4000m |
| Dimensions (W x D x H) mm | 6048*2438*2400mm |
| Weight | 18520KG |
| Battery module specifications and parameters | |
| Capacity | 21.5kWh |
| Configuration | 24S 1P |
| Nominal Voltage | 76.8V |
| Cell capacity | 280Ah |
Technical Specs
Specifications
| Maximum DC voltage (V) | 950 |
| DC voltage operating range (V) | 650-950（3P4W） |
| Maximum DC current (A) | 163*8 |
| Rated output power（KW） | 800 |
| Rated grid voltage(V) | 400 |
| Grid voltage range (V) | 320-450 |
| Maximum AC current (A) | 1272 |
| Rated frequency（Hz） | 50/60 |
| Power factor | ＞0.99（At rated power） |
| AC off-grid voltage (V) | 380/400 |
| AC off-grid frequency （Hz） | 50/60 |
| AC voltage range (V) | ±3% |
| Output voltage accuracy | 1% |
| Heat dissipation method | Fan cooling |
| Maximum efficiency | 98% |
| size (mm) | 1600*1000*2050 (Excluding Connectors and Brackets) |
| weight (kg) | 750 |
