The system has an energy storage capacity of 1720KWH, which can store sufficient electrical energy to meet long-term electricity needs; the rated output power is 800KW, and the peak power can be increased to a higher level according to the configuration, which can stably drive multiple high-power equipment to run at the same time, and adapt to the power load of small and medium-sized factories, large hotels, remote base stations and other scenarios.

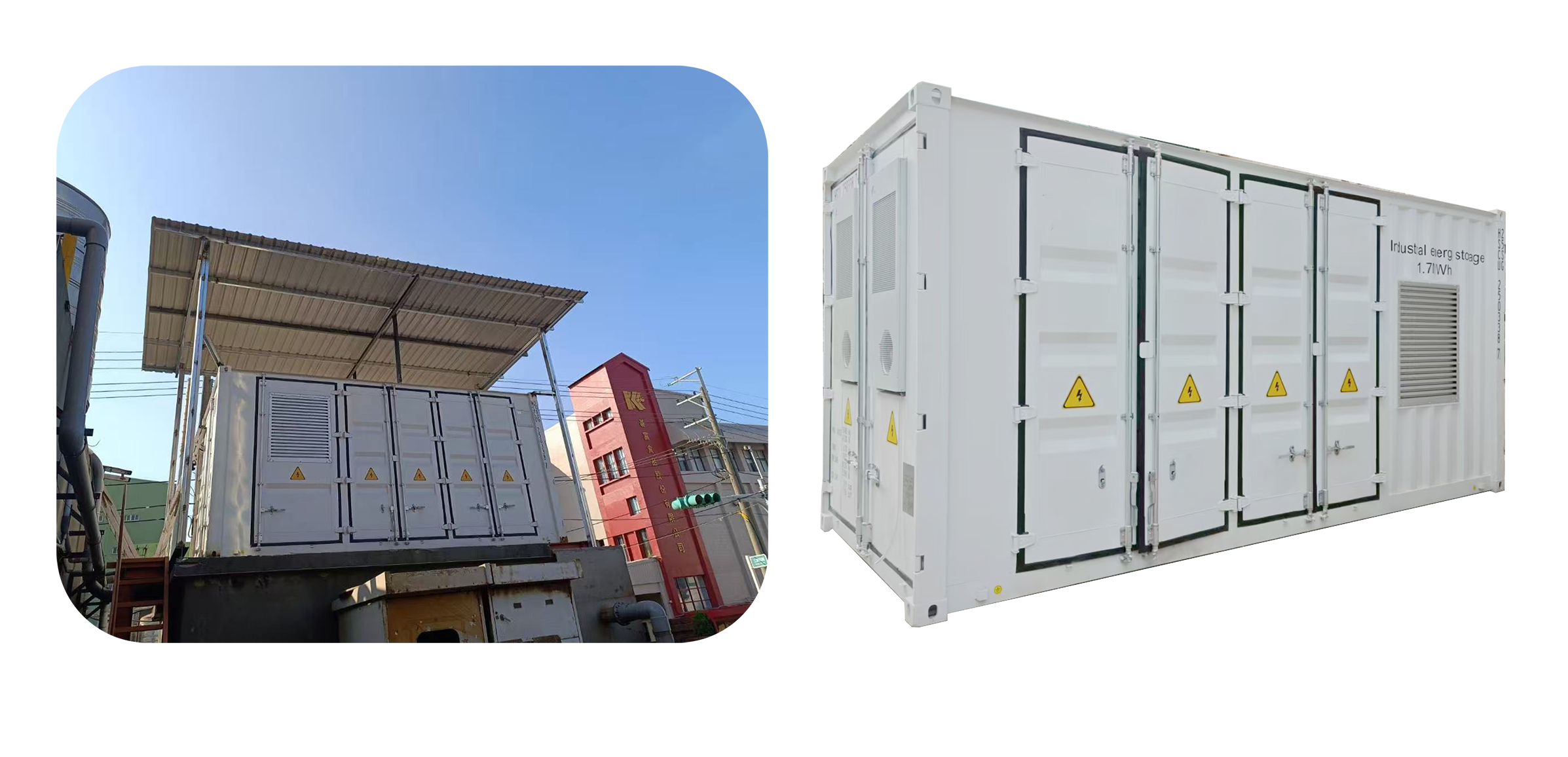

1720KWH-800KW Solution Product Image

Battery Compartment Specifications and Parameters

Cell Type280Ah-LEP
Capacity1720.0kWh
Configuration240S 8P
Nominal Voltage768.0V
Operating voltage range691.2-844.8V
Operating Temperature Range-25°C to 55°C
Cooling MethodAir cooling
Cycle Life≥8000 cycles
Protection LevelIP54
Operating Altitude≤4000m
Dimensions (W x D x H) mm6048*2438*2400mm
Weight18520KG
Battery module specifications and parameters
Capacity21.5kWh
Configuration24S 1P
Nominal Voltage76.8V
Cell capacity280Ah

Inverter specifications and parameters

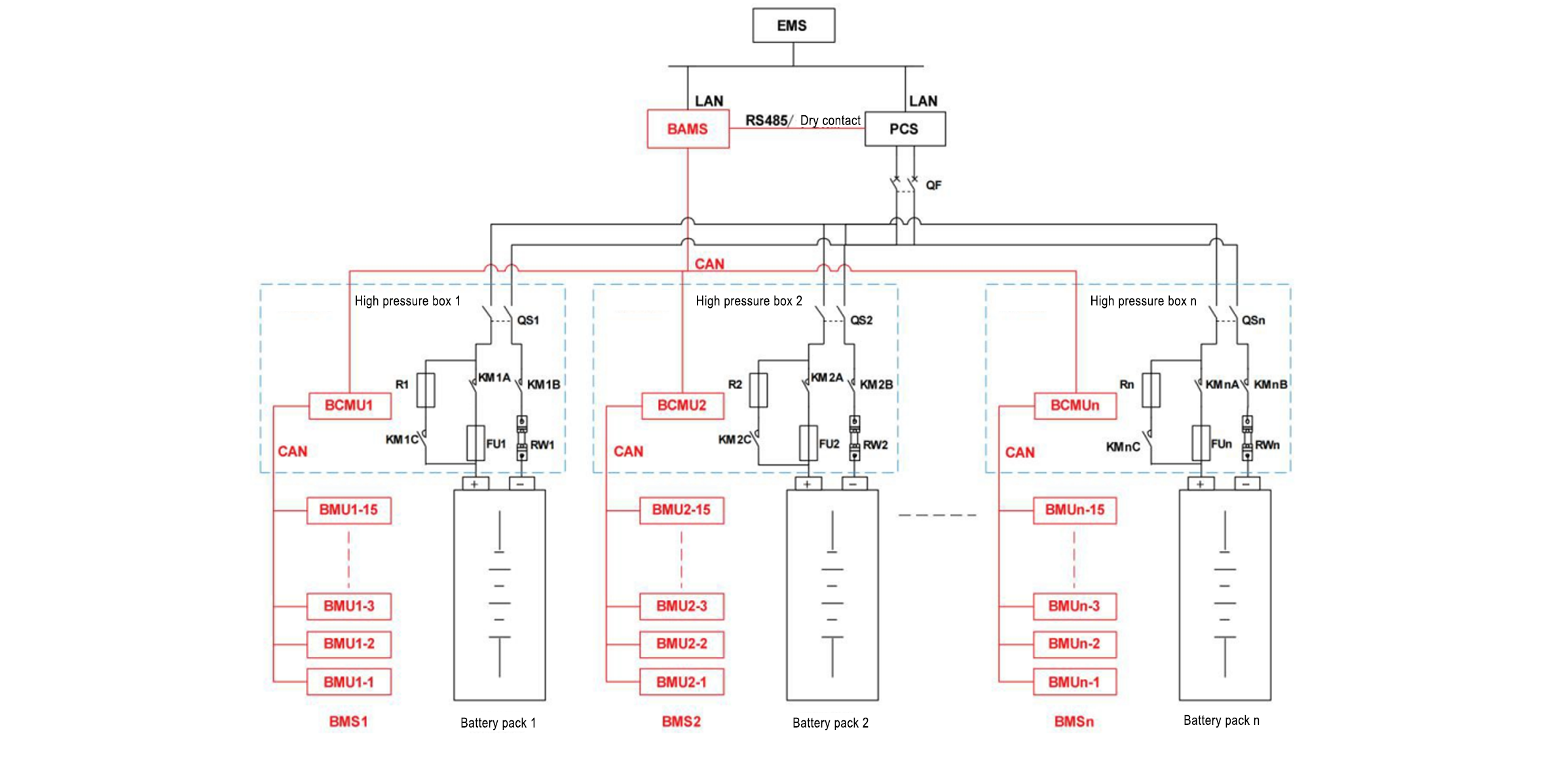

Inverter specifications and parameters

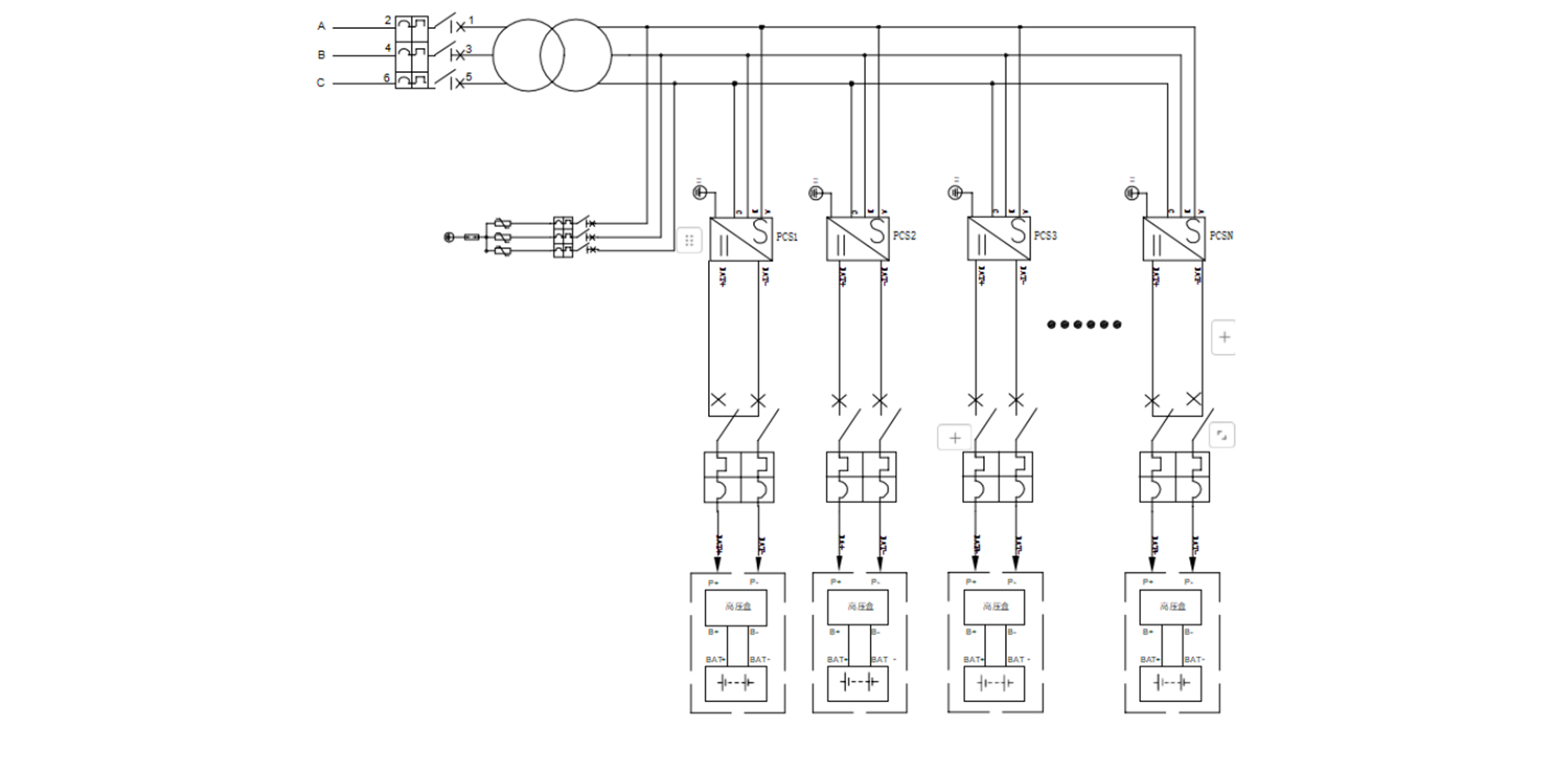

Circuit Block Diagram

Circuit Block Diagram

Boost Compartment Specifications and Parameters

Maximum DC voltage (V)950
DC voltage operating range (V)650-950 (3P4W)
Maximum DC current (A)163*8
Rated output power (KW)800
Rated grid voltage (V)400
Grid voltage range (V)320-450
Maximum AC current (A)1272
Rated frequency (Hz)50/60
Power factor>0.99 (At rated power)
AC off-grid voltage (V)380/400
AC off-grid frequency (Hz)50/60
AC voltage range (V)±3%
Output voltage accuracy1%
Heat dissipation methodFan cooling
Maximum efficiency98%
Size (mm)1600*1000*2050 (Excluding Connectors and Brackets)
Weight (kg)750

Comparison before and after use

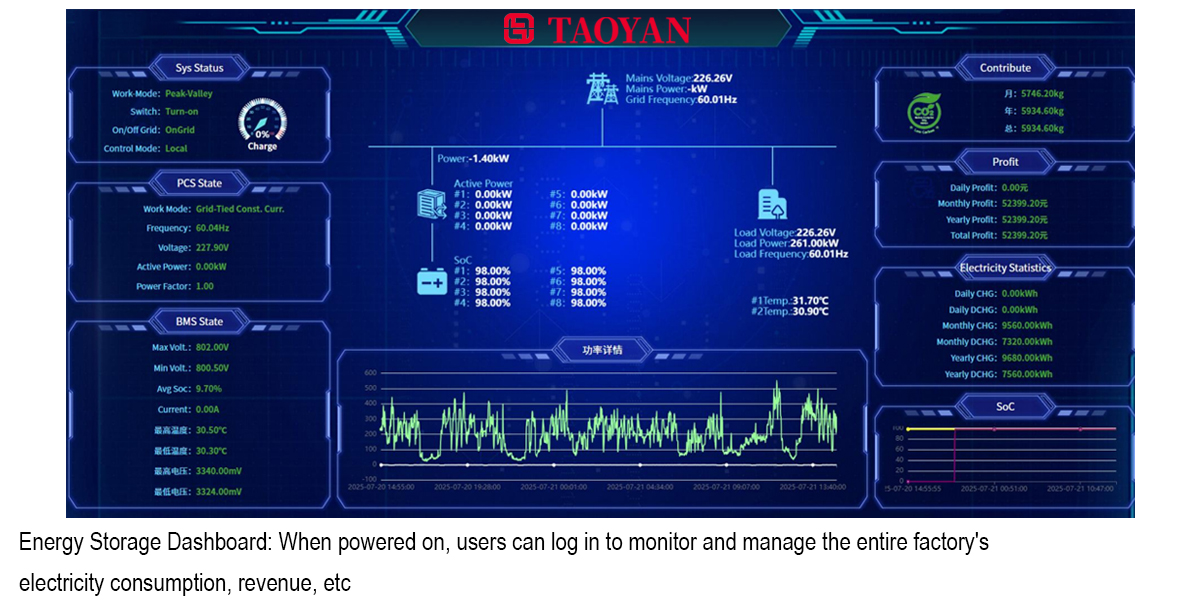

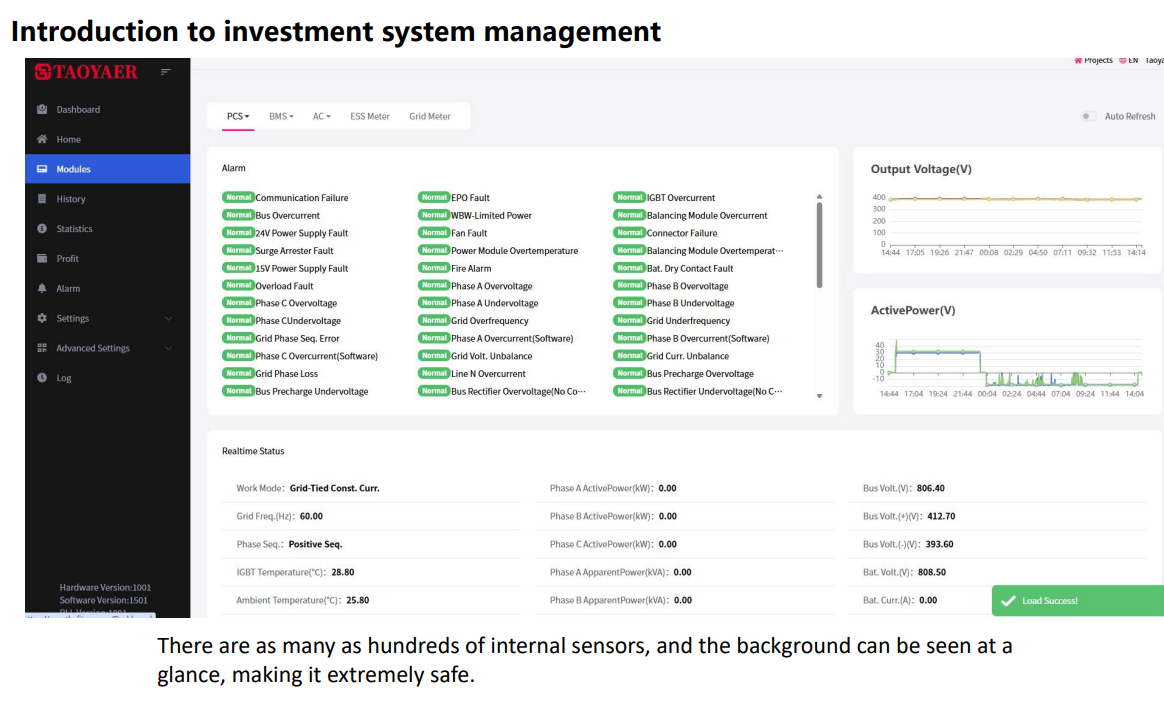

Comparison before and after use - detail Comparison before and after use - chart
